$1,035.00
Description
By adopting a ball bearing type double rail, the opening and closing of the drawer is smooth, making it ideal for storing heavy items.
Application: For storage and management of tools.
Specifications

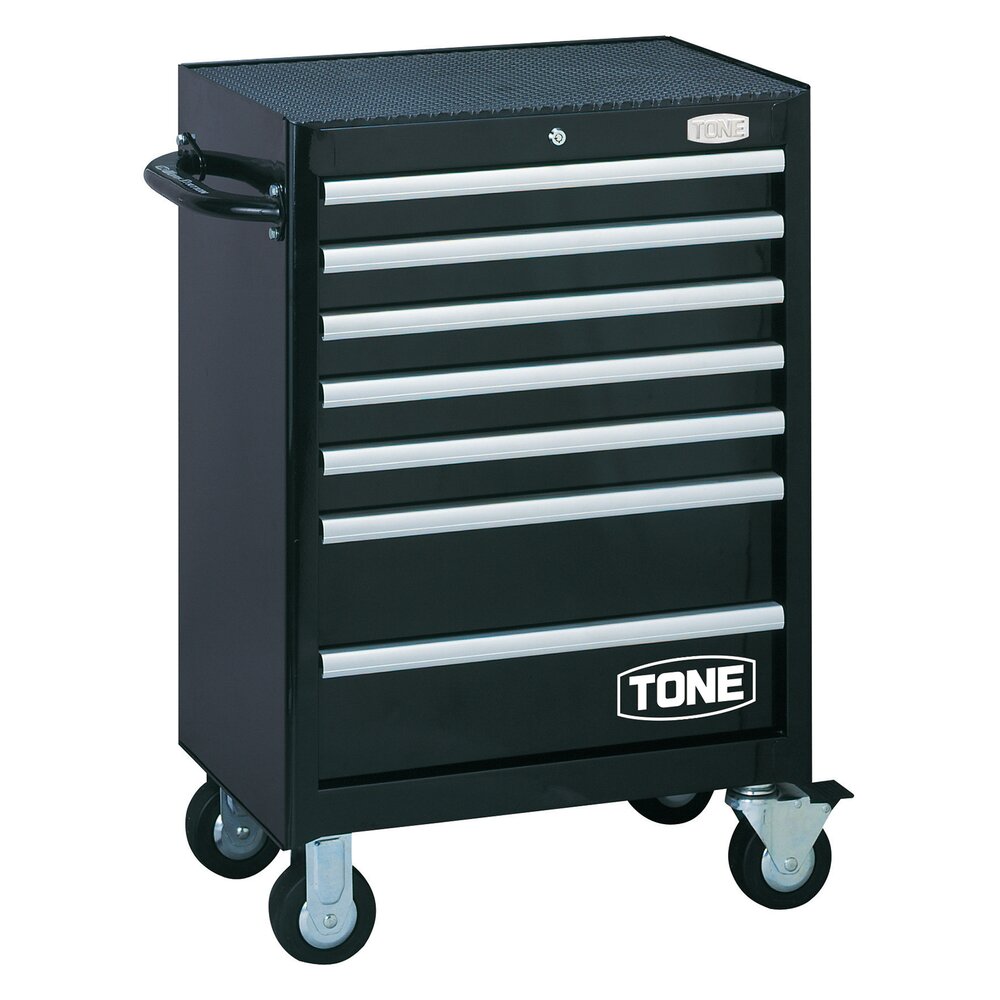

| Part Number | WS207B |
|---|---|
| Features | Ball bearing type double rail specification |
| Withstand load (N(kgf)) | Top plate load capacity: 5,488N (560kgf) Drawer load capacity: 392N (40kgf) Total load capacity (at rest): 6,860N (700kgf) Total load capacity (when moving): 5,390N (550kgf) *Total load capacity includes product mass |
| Material | steel |
| Color | black |
| Weight (g) | 63500 |
| Caster diameter | φ127mm |
| Inner dimension of drawer | w569mm×d398mm×h74mm×5 steps, w569mm×d398mm×h153mm×2 steps |
| Dimensions (W × D × H, mm) | 676 × 459 × 1015 |
Included Accessories
Drawer Mat: 7, Top Mat: 1, Handle (Including Screws): 1, Swivel Casters (Including Screws): 2, Fixed Casters (Including Screws): 2, Keys: 2, Instruction Manual: 1
Additional Information
This is a user-assembled product. Requires 12mm width across flats socket and handle.
Notes
Do not use on sloping or uneven floors. To prevent tipping over, do not pull out two or more drawers of the case at the same time.
