$715.00
Description

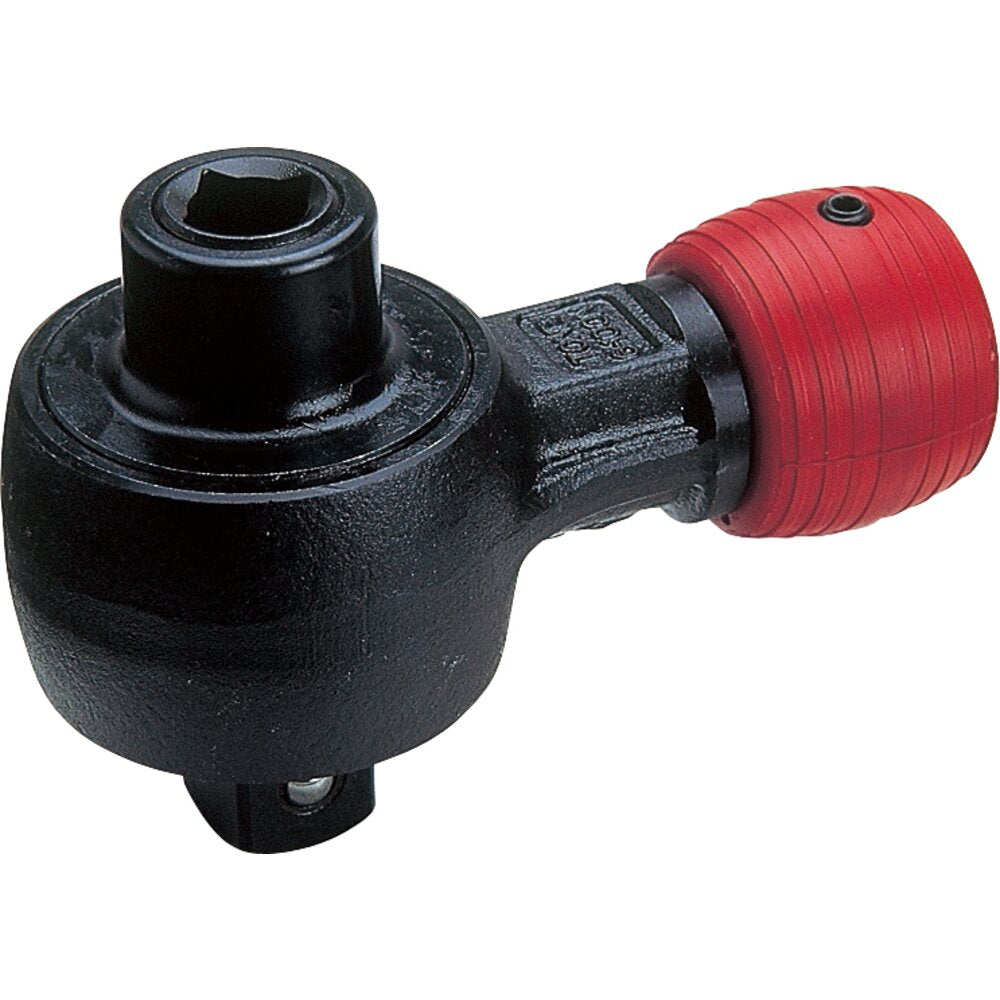

It is only the body head of the power wrench. A wrench with a booster mechanism suitable for tightening and loosening large bolts and nuts. Thanks to the boost mechanism, high torque can be output with a small amount of force even in a narrow working environment.
Application: For tightening and loosening large bolts and nuts.
Specifications
| Part Number | 4-50NBA |
|---|---|
| Output torque range (N･m) | 420 |
| Drive size | 9.5mm (3/8inch) |
| Output angle | Output angle 12.7mm(1/2inch) |
| Tip shape | size (pin & O-ring) |
| Input torque range (N・m) | 140 |
| Magnification | 3 |
| Weight (g) | 800 |
| Dimensions (W × D × H, mm) | 107 × 56 × 72 |
Included Accessories
Hexagonal L-shaped wrench: 2mm, Hexagonal L-shaped wrench: 3mm, Instruction manual
Additional Information
Please use an "impact socket" for the socket. Reaction force receiver is not included.
Notes
Do not apply more than the maximum input torque to the power wrench.
