Description

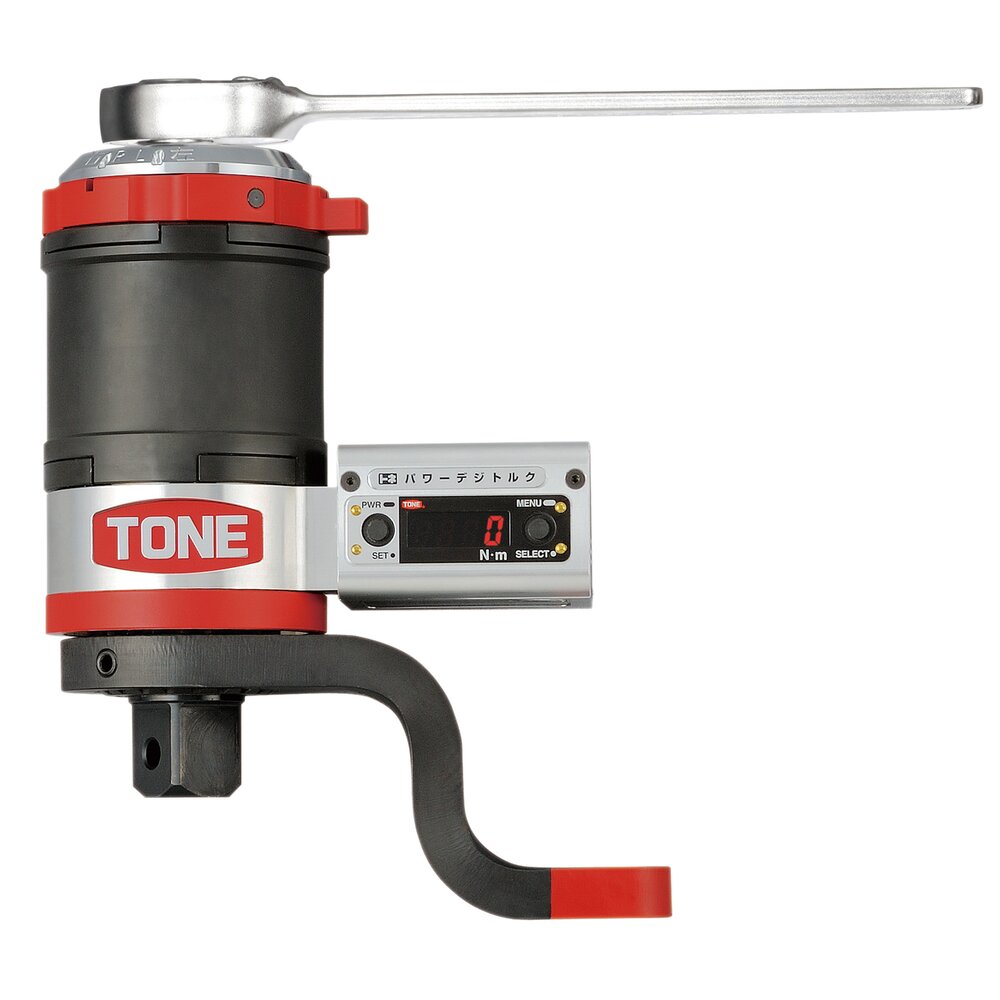

A torque wrench with a magnification mechanism that can measure, display, and record tightening torque in real time.
Application: For torque control of large bolts and nuts.
Specifications
| Part Number | PD150A |
|---|---|
| Torque Range (N·m) | 300 to 1500 |
| Output torque range (N･m) | 300 to 1500 |
| Drive size | 12.7mm(1/2inch) |
| Output angle | Output angle 25.4mm (1inch) |
| Tip shape | size (pin & O-ring) |
| Accuracy | ±4% Attached reaction force limit |
| Measuring Direction | double rotation |
| Power Supply | battery |
| Battery used | AA x 2 alkaline batteries/rechargeable Ni-MH batteries |
| Memory card | microSD 2GB |
| Continuous use count | about 1300 times |
| Weight (g) | 5800 |
| Dimensions (W × D × H, mm) | 350 × 440 × 110 |
Included Accessories
Straight reaction force receiver: 15SH, L-shaped reaction force receiver: 15SLH, Hex socket set screw: 4, Ratchet handle: 371 RH4EH, (-) screwdriver, Hex L-shaped wrench: 4mm, AA batteries: 2, microSD memory card set, instruction manual, calibration certificate, metal case torque automatic conversion
Additional Information
Please use an "impact socket." The number of continuous uses is an estimate based on using AA alkaline batteries and with the buzzer function turned off. When inquiring about the price or delivery time of parts, please use the "sales part number" rather than the balloon number.
Notes
Torque equipment requires periodic inspection. Perform periodic inspections once a year or once every 5,000 tightenings (chargeable).
