Description

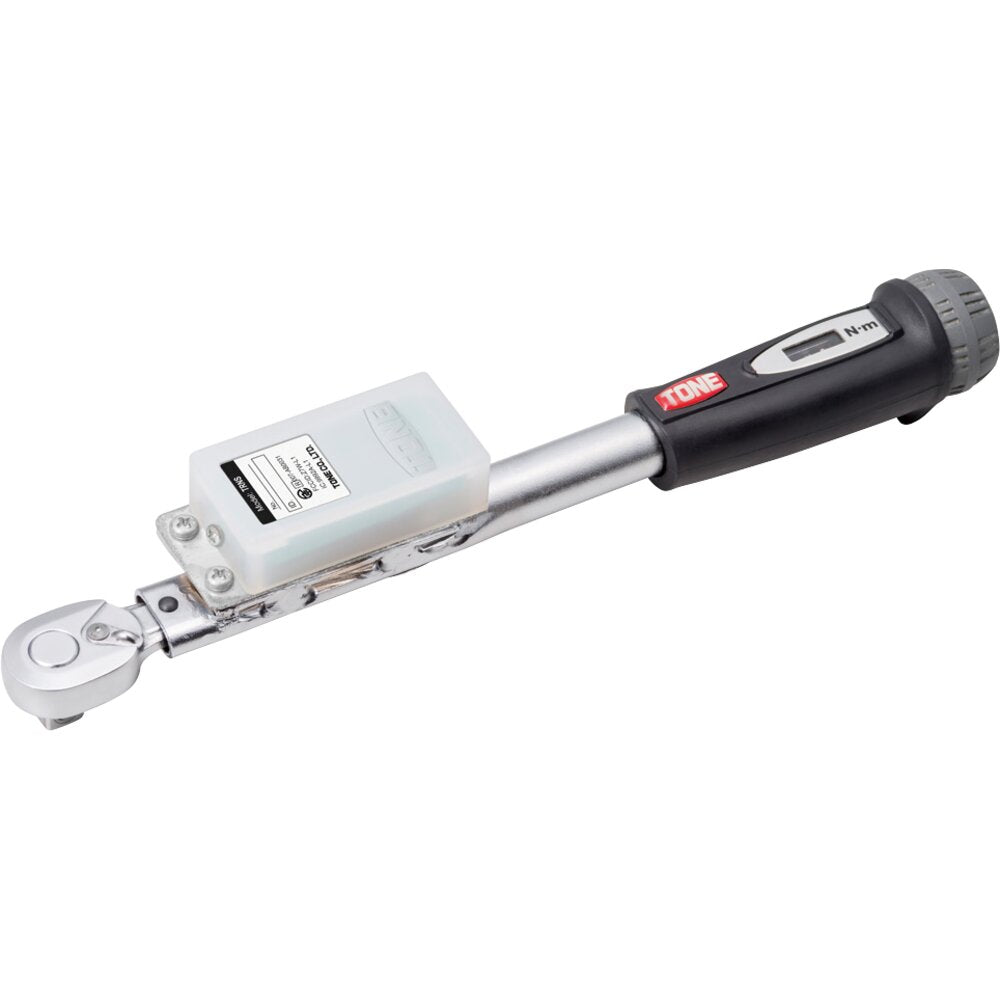

It is a specification that the Pokayoke torque wrench body and transmitter are set. By counting the tightening completion signals of the error-proof torque wrench with a counter, you can prevent forgetting to tighten.
Application: For on-site torque management where you need to check if you forgot to tighten.
Specifications
| Part Number | T4MN140W |
|---|---|
| Torque Range (N·m) | 30 to 140 |
| Drive size | 12.7mm(1/2inch) |
| Tip shape | Square drive |
| Accuracy | ±3% |
| Measuring Direction | right rotation (clockwise) |
| Display Resolution | 1N･m |
| Display Unit | N･m |
| Number of ratchet teeth | 18 |
| Battery used | Coin battery CR2032 |
| Weight (g) | 820 |
| Dimensions (W × D × H, mm) | 450 × 36 × 30.4 |
Included Accessories
Calibration certificate (with traceability system diagram), instruction manual, transmitter TRNS torque automatic conversion
Additional Information
It is a specification for domestic use only.
Notes
Torque load direction is clockwise only. Calibration certificate expiry date 1. If unused, the warranty period is three years from the calibration date on the calibration certificate. 2. If use is commenced within three years of the calibration date on the calibration certificate, the warranty will be valid for one year from the commencement of use or up to 100,000 tightening cycles. Torque equipment requires regular inspection. As a guideline, we recommend that you have the equipment inspected once a year or once every 100,000 uses (fees apply). If you no longer hear the "click" or feel the "shock", the product is broken and will require repair or inspection (fees may apply). The accuracy may be affected due to rough handling, leaving it unused for a long time, frequent use, etc. If accuracy is required, please have it inspected periodically (fees apply).
