Description

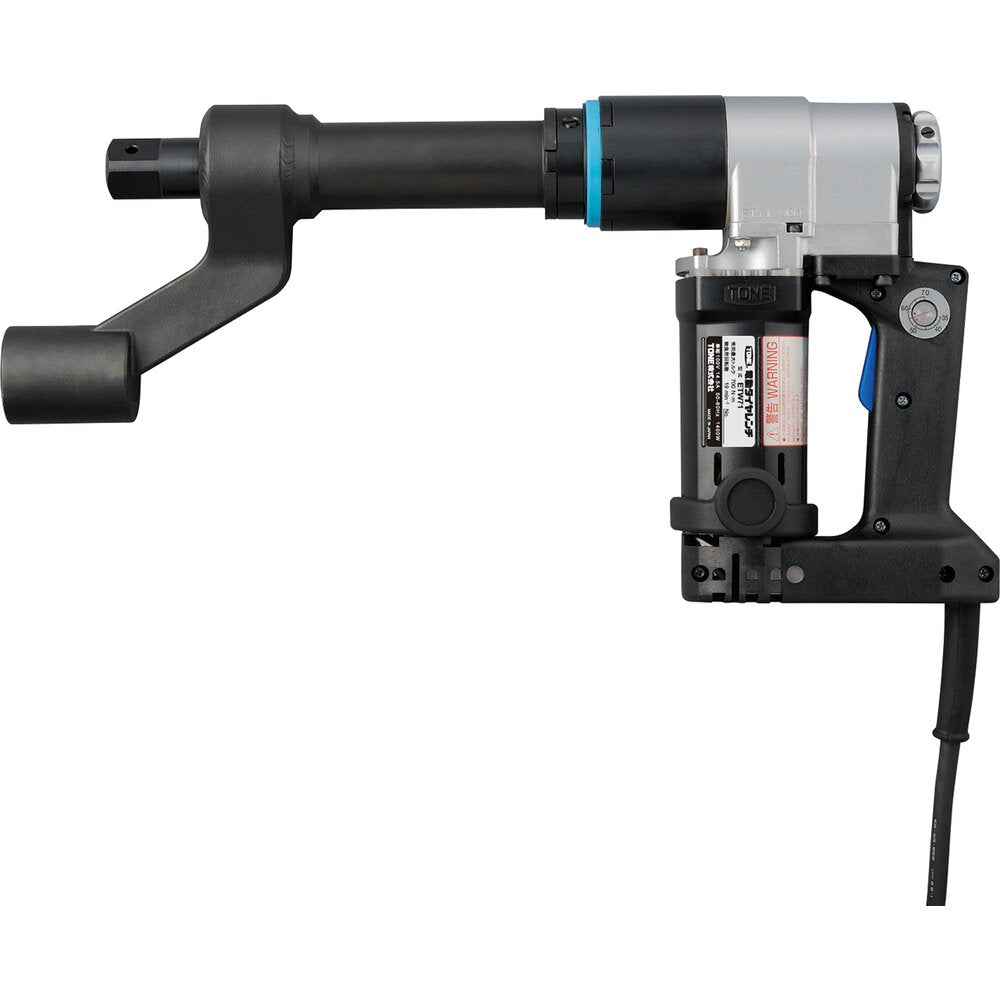

Wheel nut tightening machine for tires for large vehicles such as large buses and trucks. Achieves high-precision torque control and automatic stop. A set product that combines a digital torque that allows you to check the tightening torque.
Application: For tightening and loosening wheel nuts of tires for large buses and trucks.
Specifications
| Part Number | ETW71LD |
|---|---|
| Right rotation maximum torque (N m) | 700Nm |
| Torque control range (N･m) | 350-700 |
| Tip shape | size (pin & O-ring) |
| Features | Dual rotation, torque control, digital torque compatible |
| Shape | pistol type |
| No load speed (min-1[rpm]) | 19 |
| Repeated tightening accuracy (%) | ±5 |
| Power Supply | Wired |
| Voltage single phase (V) | 100V |
| Maximum current (A) | 14.5 |
| Maximum power consumption (W) | 1403 |
| Weight (g) | 8400 |
| Dimensions (W × D × H, mm) | 330 × 520 × 100 |
Included Accessories
Output unit: 1, (-) driver: 1, instruction manual: 1, metal case: 1, foil nut combination socket: 8ED-4121A 1, hex bar L-shaped wrench (4mm): 1, (-) driver: 1 AAA batteries: 4 Instruction manual: 1 Calibration certificate ( with traceability diagram): 1 Case: 1
Additional Information
Repeated tightening accuracy is the variation in tightening torque when tightening with the same torque setting and working conditions expressed in %.
Notes
Torque equipment requires periodic inspection. As a guideline, perform a periodic inspection once a year or once every 30,000 tightenings (chargeable).
