$7,250.00
Description

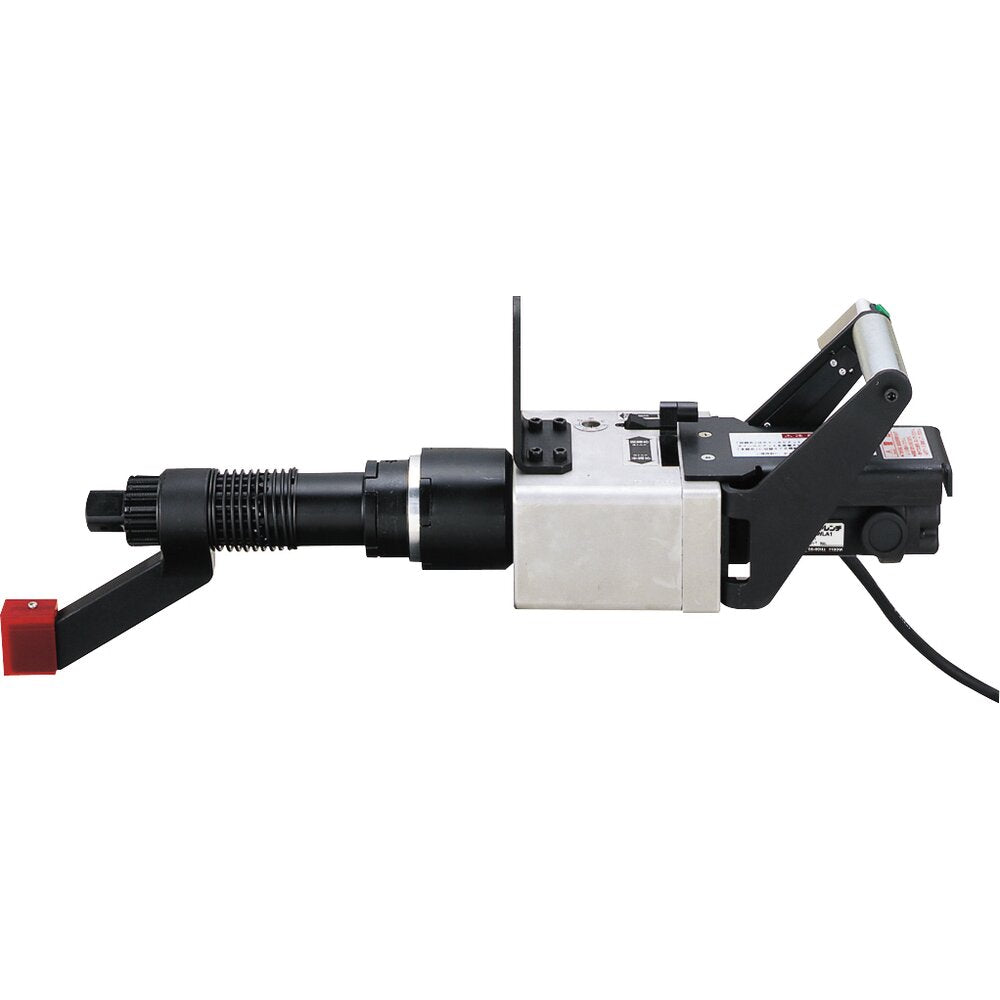

Wheel nut tightening machine for tires for large vehicles such as large buses and trucks. Achieves high-precision torque control and automatic stop.
Application: For tightening and loosening wheel nuts of tires for large buses and trucks.
Specifications
| Part Number | 8-90TWC10A |
|---|---|
| Right rotation maximum torque (N m) | 900Nm |
| Torque control range (N･m) | 400-900 |
| Tip shape | size (pin & O-ring) |
| Features | Dual rotation, torque control, digital torque compatible |
| Shape | pistol type |
| No load speed (min-1[rpm]) | 15 |
| Repeated tightening accuracy (%) | ±5 |
| Power Supply | Wired |
| Voltage single phase (V) | 100V |
| Maximum current (A) | 13.5 |
| Maximum power consumption (W) | 1100 |
| Weight (g) | 10100 |
| Dimensions (W × D × H, mm) | 330 × 520 × 100 |
Included Accessories
(-) Driver: 1, Instruction Manual: 1, Metal Case: 1, Wheel Nut Combi Socket: Impact Tire Socket: 8A-33T 1
Additional Information
Repeated tightening accuracy is the variation in tightening torque when tightening with the same torque setting and working conditions expressed in %.
Notes
Torque equipment requires periodic inspection. As a guideline, perform a periodic inspection once a year or once every 30,000 tightenings (chargeable).
