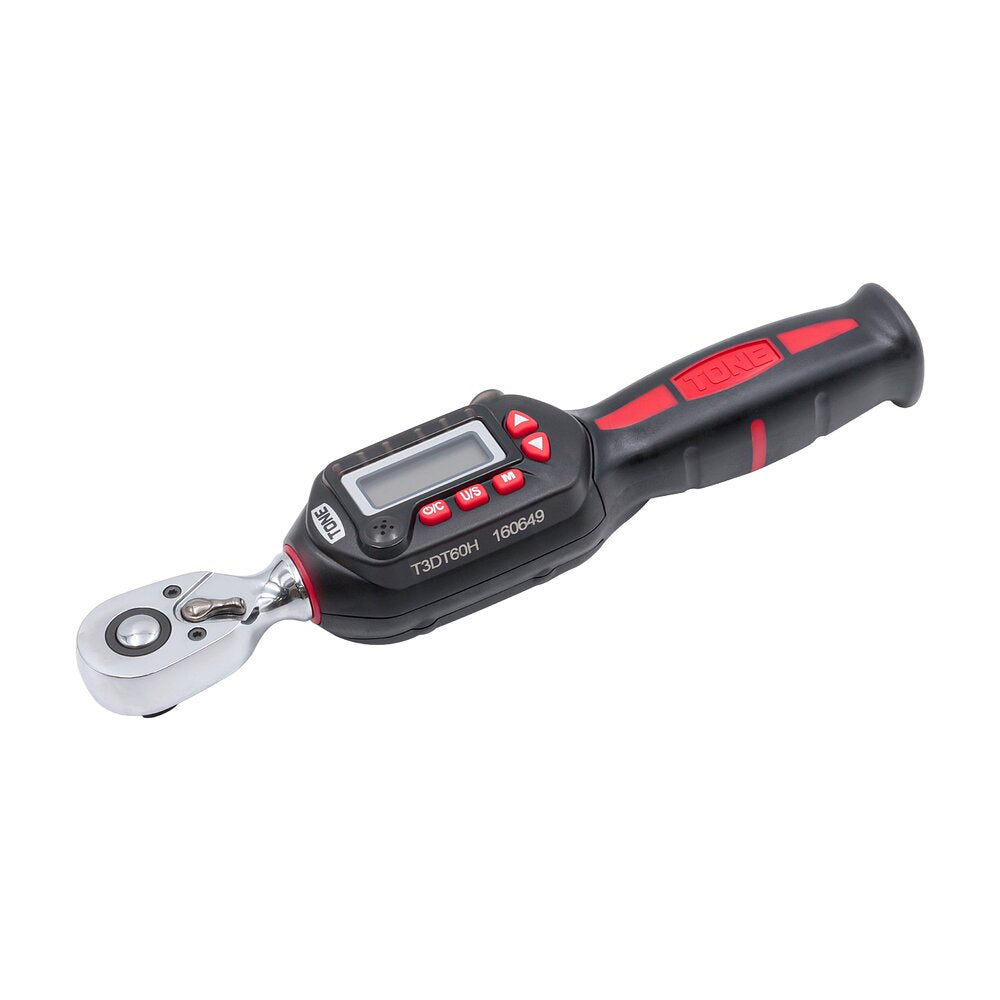

Description
LED lamp, buzzer sound and liquid crystal display inform you of the tightening status for the preset torque value. Up to 250 measured torque values can be saved.
Application: For assembly and maintenance of industrial machinery, analytical instruments, automobiles, etc.
Specifications
| Part Number | T3DT85H |
|---|---|
| Torque Range (N·m) | 17-85 |
| Drive size | 9.5mm (3/8inch) |
| Tip shape | Square drive |
| Features | Recording function |
| Accuracy | ±3% |
| Minimum display unit | 3～ |
| Measuring Direction | double rotation |
| Display Resolution | 0.1 N･m |
| Display Unit | N･m |
| Number of ratchet teeth | 48 |
| Power Supply | battery |
| Battery used | AAA x 2 alkaline batteries |
| Operating Temperature | -20 to 40°C |
| Storage Temperature | -20 to 70°C |
| Weight (g) | 510 |
| Dimensions (W × D × H, mm) | 271 × 47 × 38.3 |
Included Accessories
Communication software CD, USB cable, instruction manual, calibration certificate ( with traceability system diagram), resin case torque automatic conversion table
Additional Information
Battery life varies depending on usage and storage environments.
Notes
Calibration certificate expiry date 1. If unused, the warranty period is three years from the calibration date on the calibration certificate. 2. If use is commenced within three years of the calibration date on the calibration certificate, the warranty will be valid for one year from the commencement of use or up to 100,000 tightening cycles. Torque equipment requires regular inspection. As a guideline, we recommend that you have the equipment inspected once a year or once every 100,000 uses (fees apply). The accuracy may be affected due to rough handling, leaving it unused for a long time, frequent use, etc. If accuracy is required, please have it inspected periodically (fees apply).
