Description

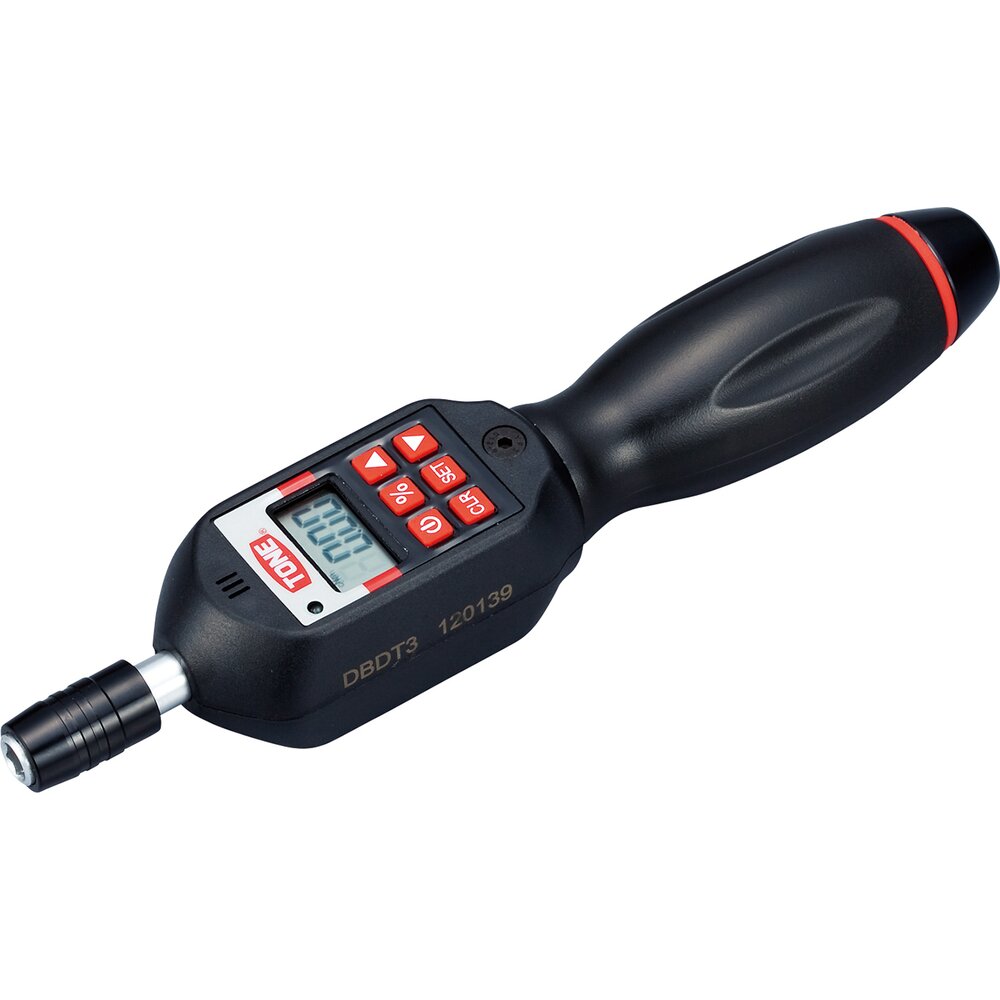

This is a digital torque measuring instrument (screwdriver type) used by inserting a bit into the tip holder. A buzzer sound and LED inform you of overtorque prevention.
Application: Small torque tightening work.
Specifications
| Part Number | DBDT3S |
|---|---|
| Torque Range (N·m) | 0.3 to 3 |
| Drive size | Bit insertion 6.35mm (DIN3126 ISO1173 short bit) |
| Tip shape | Bit insertion |
| Features | double rotation |
| Accuracy | ±3% |
| Measuring Direction | double rotation |
| Display Resolution | 0.1cN･m |
| Display Unit | cN･m |
| Power Supply | battery |
| Battery used | AAA x 2 alkaline batteries |
| Operating Temperature | 5 to 42°C |
| Storage Temperature | -20 to 50°C |
| Weight (g) | 150 |
| Dimensions (W × D × H, mm) | 212 × 38.5 × 32 |
Included Accessories
Driver bit set: BTPM6S, calibration certificate (with traceability system diagram), instruction manual, resin case torque automatic conversion
Notes
Calibration certificate expiration date 1. If unused, the warranty period is one year from the calibration date on the calibration certificate. 2. If use is commenced within one year from the calibration date on the calibration certificate, the warranty period shall be one year from the commencement of use. Torque equipment requires regular inspection. As a guideline, we recommend that you have this inspection done once a year (fees apply). Accuracy may be affected by rough handling, leaving it unused for a long time, frequent use, etc. If accuracy is required, please have it inspected periodically (fees apply).
