Description

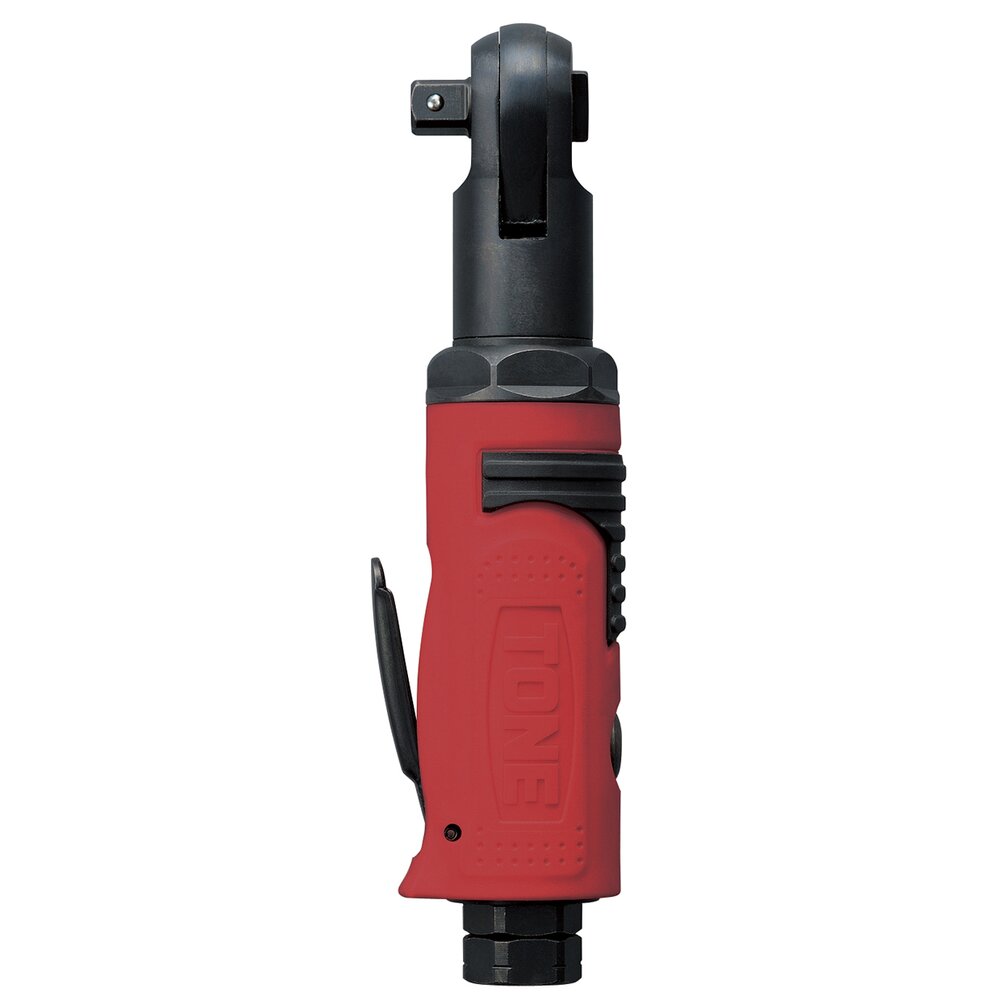

Ideal for attaching and detaching bolts and nuts in narrow spaces where work is difficult, such as automobile maintenance and assembly lines. Equipped with a rotating joint that prevents twisting of the hose.
Application: For working in narrow and difficult places.
Specifications
| Part Number | AR3100 |
|---|---|
| Right rotation maximum torque (N m) | 34 |
| Counterclockwise rotation maximum torque (N m) | 34 |
| Output angle | Output angle 9.5mm (3/8inch) |
| Tip shape | Square drive |
| Features | double rotation |
| Working air pressure (MPa) | 0.62 |
| Joint thread diameter (mm) | Rc1/4 (PT1/4) |
| Air hose inner diameter (mm) | 10mm or more |
| Weight (g) | 600 |
| Dimensions (W × D × H, mm) | 182 × 35 × 32 |
Included Accessories
Plug: R1/4 (PT1/4), instruction manual
Additional Information
Please use a compressor with an air tank. A compressor output of 0.75kW (1PS) or higher is recommended. Maximum air consumption (ntp) indicates the air consumption converted to standard conditions (0°C, 1 atmosphere = 0.1MPa). Maximum air consumption (op) indicates the air consumption under actual operating conditions (20°C, 0.62MPa). When inquiring about the price or delivery time of parts, please use the "sales part number" rather than the balloon number.
Notes
The tightening torque is a reference value. The torque value changes depending on the conditions.
