Description
Ideal for changing tires on large buses and trucks, and for maintenance of heavy machinery and construction machinery. Light weight is realized by aluminum alloy hammer case and body. The long anvil type is ideal for deep work.
Application: For changing tires of large buses and trucks, and maintenance of heavy machinery and construction machinery.
Specifications

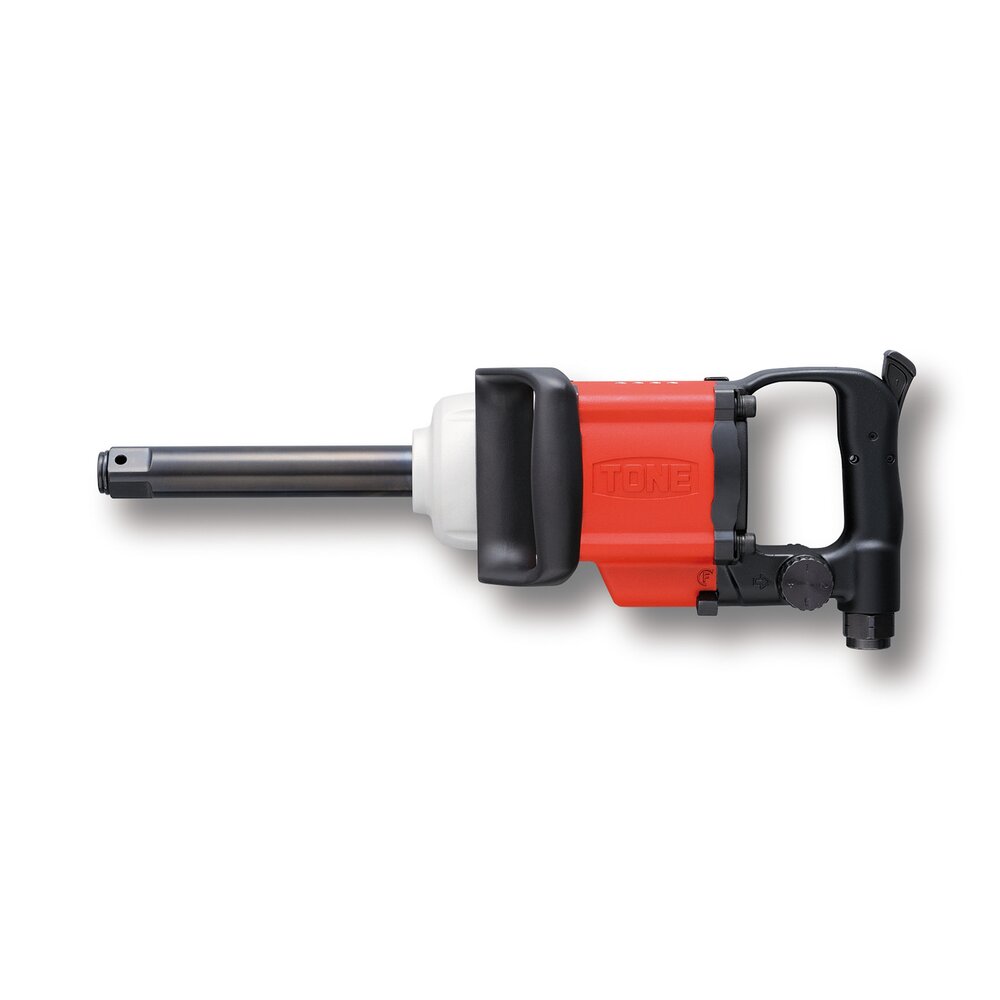

| Part Number | AIS8330L |
|---|---|
| Right rotation maximum torque (N m) | 2100 |
| Counterclockwise rotation maximum torque (N m) | 2100 |
| Output angle | Output angle 25.4mm (1inch) |
| Tip shape | size (pin & O-ring) |
| Features | double rotation |
| No load speed (min-1[rpm]) | 4500 |
| Working air pressure (MPa) | 0.62 |
| Joint thread diameter (mm) | Rc1/2 (PT1/2) |
| Air hose inner diameter (mm) | 19mm or more |
| Weight (g) | 7000 |
| Dimensions (W × D × H, mm) | 468 × 165 × 189 |
Included Accessories
Plug: R1/2 (PT1/2), instruction manual, hex L-shaped wrench: 6mm
Additional Information
Please use a compressor with an air tank. A compressor output of 0.75kW (1PS) or higher is recommended. Maximum air consumption (ntp) indicates the air consumption converted to standard conditions (0°C, 1 atmosphere = 0.1MPa). Maximum air consumption (op) indicates the air consumption under actual operating conditions (20°C, 0.62MPa). When inquiring about the price or delivery time of parts, please use the "sales part number" rather than the balloon number.
Notes
The tightening torque is a reference value. The torque value changes depending on the conditions.
