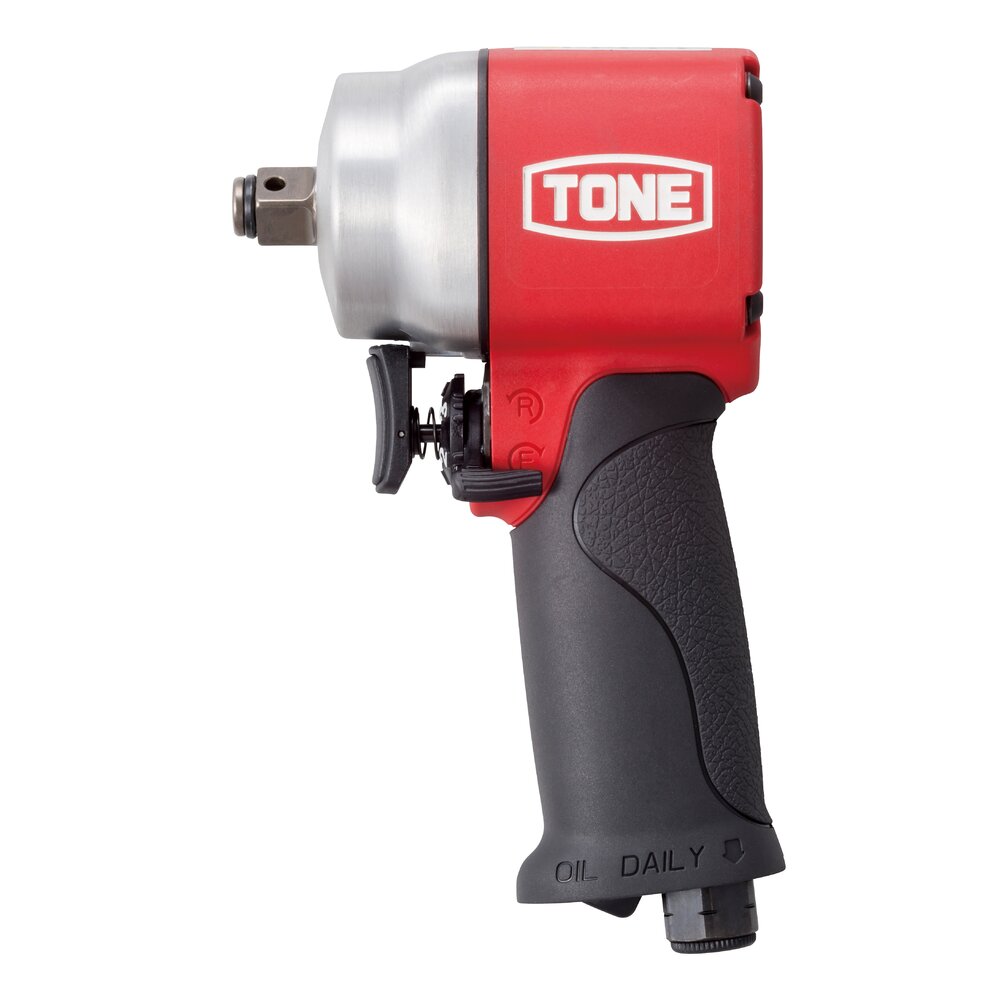

Description
A special reinforced resin body has been adopted to achieve an ultra-light weight of 1.0 kg. It is ultra-compact and can fit in narrow spaces that were previously inaccessible. Achieved high power (700N･m).
Application: For changing automobile tires and tightening and loosening nuts and bolts for general work.
Specifications
| Part Number | AI4201 |
|---|---|
| Right rotation maximum torque (N m) | 610 |
| Counterclockwise rotation maximum torque (N m) | 700 |
| Output angle | Output angle 12.7mm(1/2inch) |
| Tip shape | size (pin & O-ring) |
| Features | double rotation |
| No load speed (min-1[rpm]) | 10000 |
| Working air pressure (MPa) | 0.62 |
| Joint thread diameter (mm) | Rc1/4 (PT1/4) |
| Air hose inner diameter (mm) | 10mm or more |
| Weight (g) | 1000 |
| Dimensions (W × D × H, mm) | 184 × 108 × 63 |
Included Accessories
Plug: R1/4 (PT1/4), instruction manual
Additional Information
Please use a compressor with an air tank. A compressor output of 0.75kW (1PS) or higher is recommended. Maximum air consumption (ntp) indicates the air consumption converted to standard conditions (0°C, 1 atmosphere = 0.1MPa). Maximum air consumption (op) indicates the air consumption under actual operating conditions (20°C, 0.62MPa). When inquiring about the price or delivery time of parts, please use the "sales part number" rather than the balloon number.
Notes
The tightening torque is a reference value. The torque value changes depending on the conditions.
