$420.00
Description

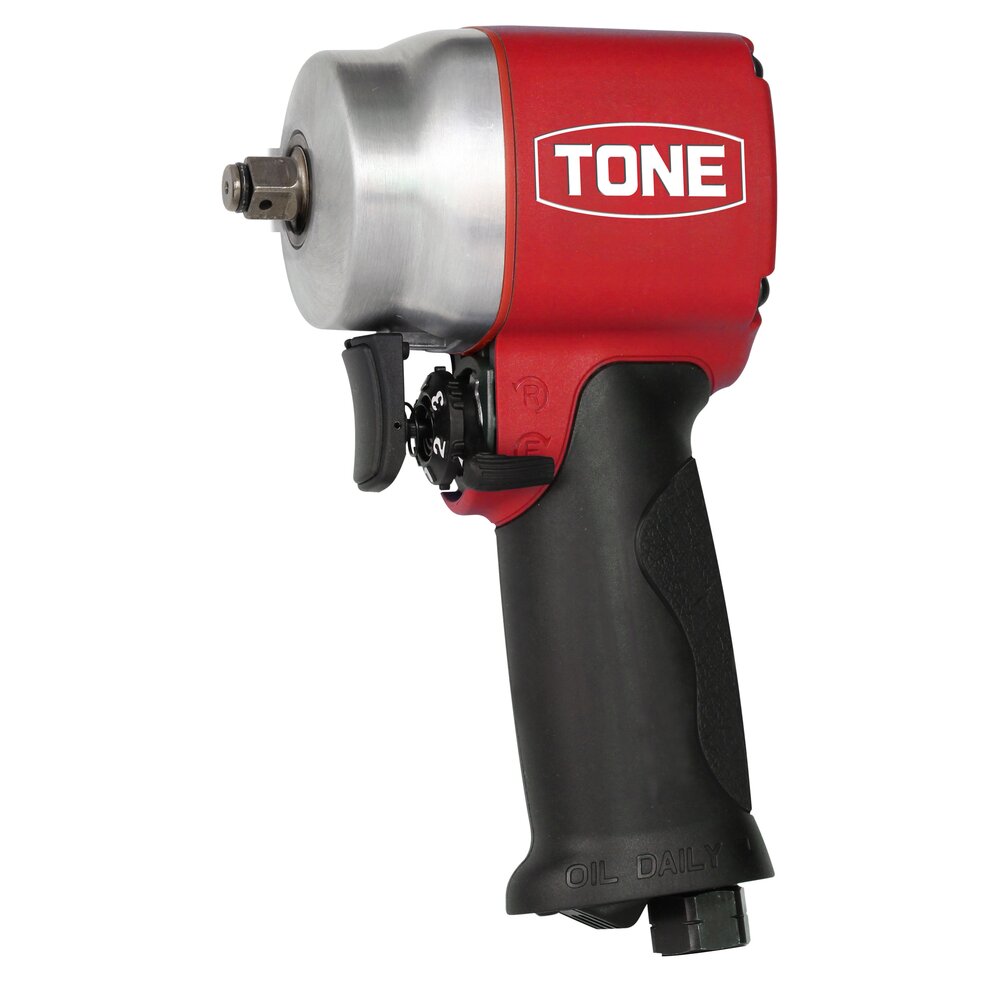

An impact wrench with a short tip that can be used in narrow spaces. In order to perform loosening work efficiently, the reverse (left) rotation direction can be set to a higher output than the forward (right) rotation.
Application: For changing automobile tires and tightening and loosening nuts and bolts for general work.
Specifications
| Part Number | AI3121 |
|---|---|
| Right rotation maximum torque (N m) | 370 |
| Counterclockwise rotation maximum torque (N m) | 460 |
| Output angle | Output angle 9.5mm (3/8inch) |
| Tip shape | size (pin & O-ring) |
| Features | double rotation |
| No load speed (min-1[rpm]) | 9000 |
| Working air pressure (MPa) | 0.62 |
| Joint thread diameter (mm) | Rc1/4 (PT1/4) |
| Air hose inner diameter (mm) | 10mm or more |
| Weight (g) | 1000 |
| Dimensions (W × D × H, mm) | 184 × 108 × 63 |
Included Accessories
Plug: R1/4 (PT1/4), instruction manual
Additional Information
When inquiring about the price or delivery time of parts, please use the "sales part number" rather than the balloon number.
Notes
The tightening torque is a reference value. The torque value changes depending on the conditions.
