Description
high pressure high power. Its performance has been proven in races. It can be used in a wide range of applications, from plants, construction, and machine maintenance.
Application: For changing automobile tires and tightening and loosening nuts and bolts for general work.
Specifications

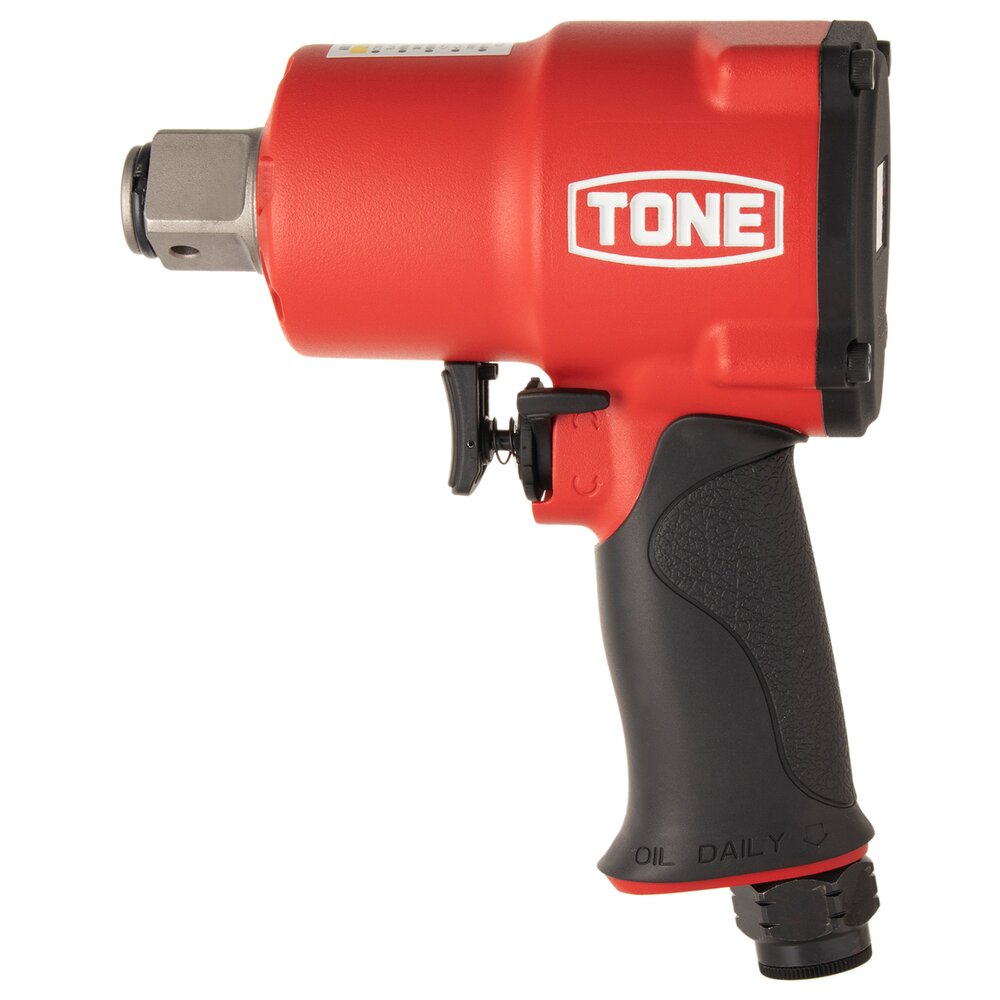

| Part Number | AI8360R |
|---|---|
| Right rotation maximum torque (N m) | 2200 |
| Counterclockwise rotation maximum torque (N m) | 2500 |
| Output angle | Output angle 25.4mm (1inch) |
| Tip shape | size (pin & O-ring) |
| Features | double rotation |
| No load speed (min-1[rpm]) | 7000 |
| Working air pressure (MPa) | 2.5 |
| Joint thread diameter (mm) | Rc1/2 (PT1/2) |
| Air hose inner diameter (mm) | 19mm or more |
| Weight (g) | 3000 |
| Dimensions (W × D × H, mm) | 198 × 167 × 80 |
Included Accessories
Plug: R1/2 (PT1/2), instruction manual
Notes
The tightening torque is a reference value. The torque value changes depending on the conditions.
