Description

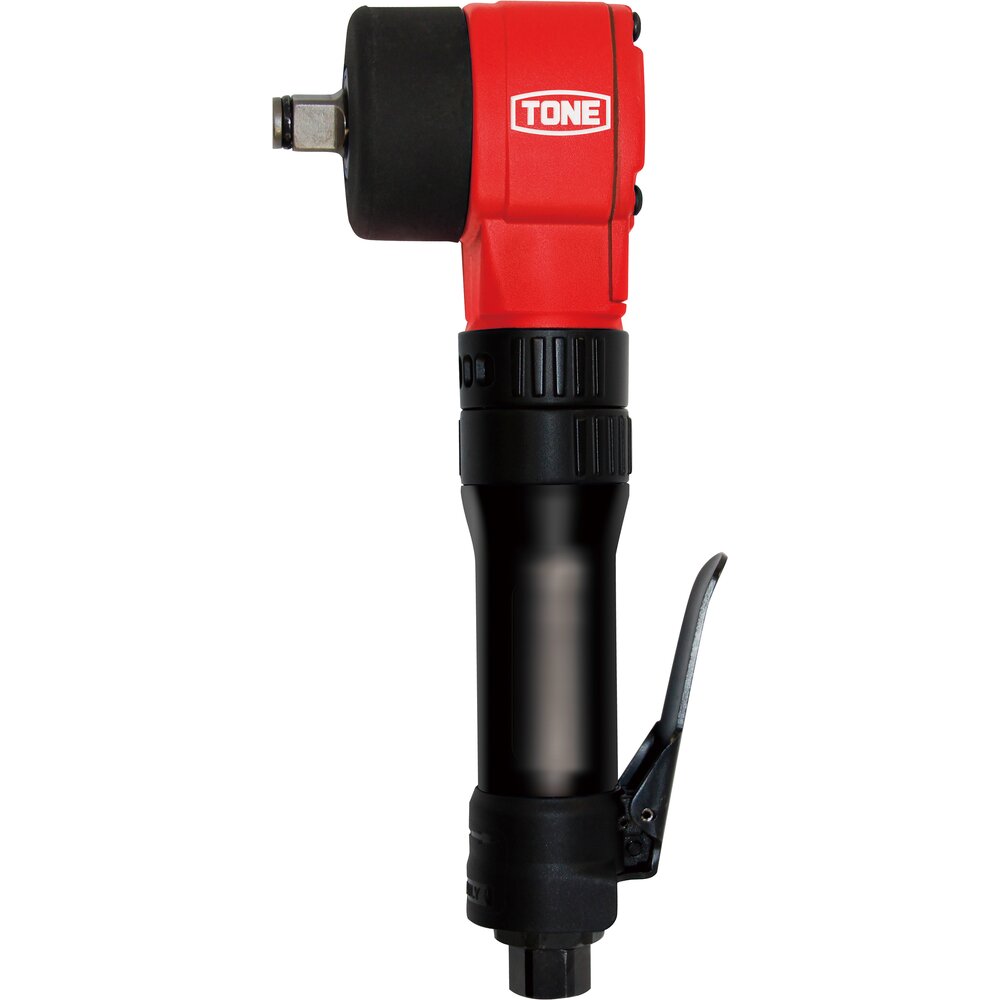

The thin head makes it ideal for attaching and detaching bolts in narrow spaces. The direction of the switch can be changed by 360° (fixed at 45°).
Application: For changing automobile tires and tightening and loosening nuts and bolts for general work.
Specifications
| Part Number | AIAS4160 |
|---|---|
| Right rotation maximum torque (N m) | 400 |
| Counterclockwise rotation maximum torque (N m) | 400 |
| Output angle | Output angle 12.7mm(1/2inch) |
| Tip shape | size (pin & O-ring) |
| Features | double rotation |
| No load speed (min-1[rpm]) | 9800 |
| Working air pressure (MPa) | 0.62 |
| Joint thread diameter (mm) | Rc1/4 (PT1/4) |
| Air hose inner diameter (mm) | 10mm or more |
| Weight (g) | 1270 |
| Dimensions (W × D × H, mm) | 247 × 88 × 59 |
Included Accessories
Plug: R1/4 (PT1/4), instruction manual
Notes
The tightening torque is a reference value. The torque value changes depending on the conditions.
