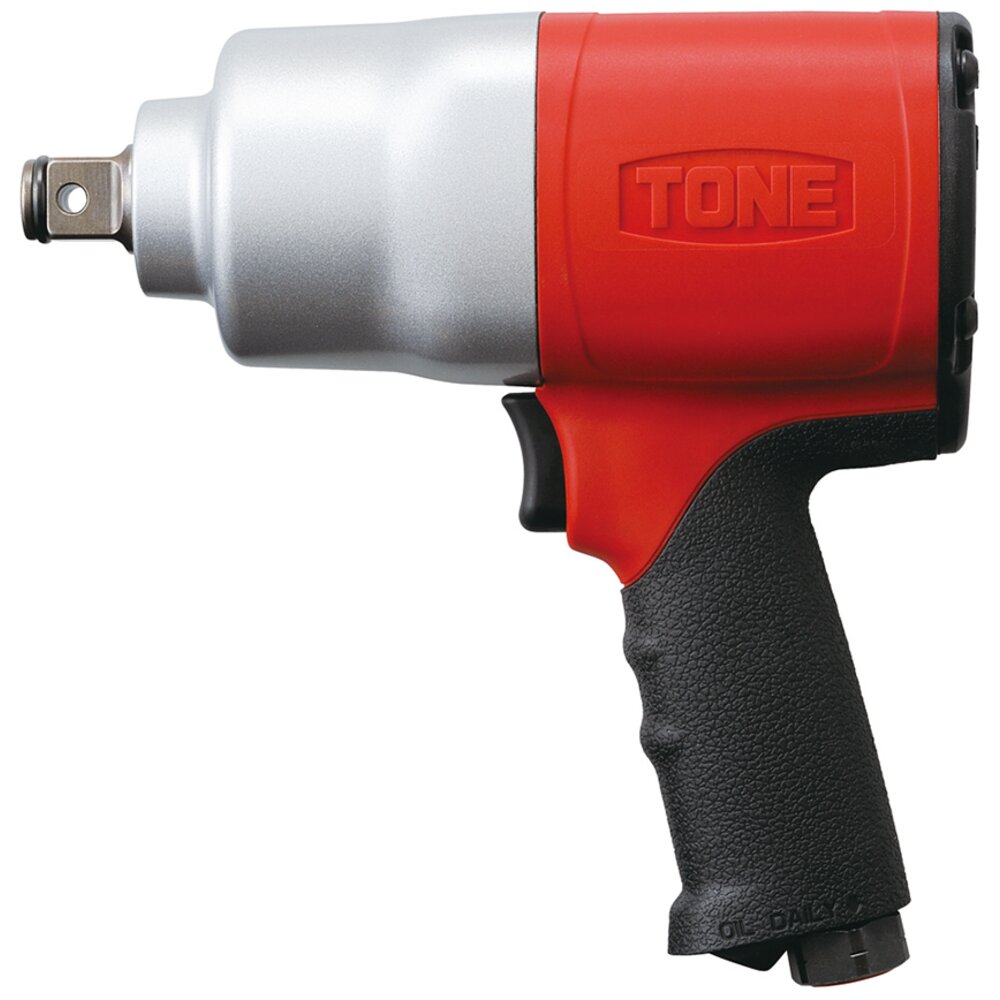

Description
Ideal for changing tires on large buses and trucks, and for maintenance of heavy machinery and construction machinery. The magnesium alloy hammer case and special reinforced resin body have achieved a light weight of 3.2 kg.
Application: For changing automobile tires and tightening and loosening nuts and bolts for general work.
Specifications
| Part Number | AI6300 |
|---|---|
| Right rotation maximum torque (N m) | 1600 |
| Counterclockwise rotation maximum torque (N m) | 1600 |
| Output angle | Output angle 19.0mm (3/4inch) |
| Tip shape | size (pin & O-ring) |
| Features | double rotation |
| No load speed (min-1[rpm]) | 5750 |
| Working air pressure (MPa) | 0.62 |
| Joint thread diameter (mm) | Rc3/8 (PT3/8) |
| Air hose inner diameter (mm) | 13mm or more |
| Weight (g) | 3200 |
| Dimensions (W × D × H, mm) | 219 × 218 × 84 |
Included Accessories
Plug: R3/8 (PT3/8), instruction manual
Additional Information
Please use a compressor with an air tank. A compressor output of 0.75kW (1PS) or higher is recommended. Maximum air consumption (ntp) indicates the air consumption converted to standard conditions (0°C, 1 atmosphere = 0.1MPa). Maximum air consumption (op) indicates the air consumption under actual operating conditions (20°C, 0.62MPa). When inquiring about the price or delivery time of parts, please use the "sales part number" rather than the balloon number.
Notes
The tightening torque is a reference value. The torque value changes depending on the conditions.
