Description

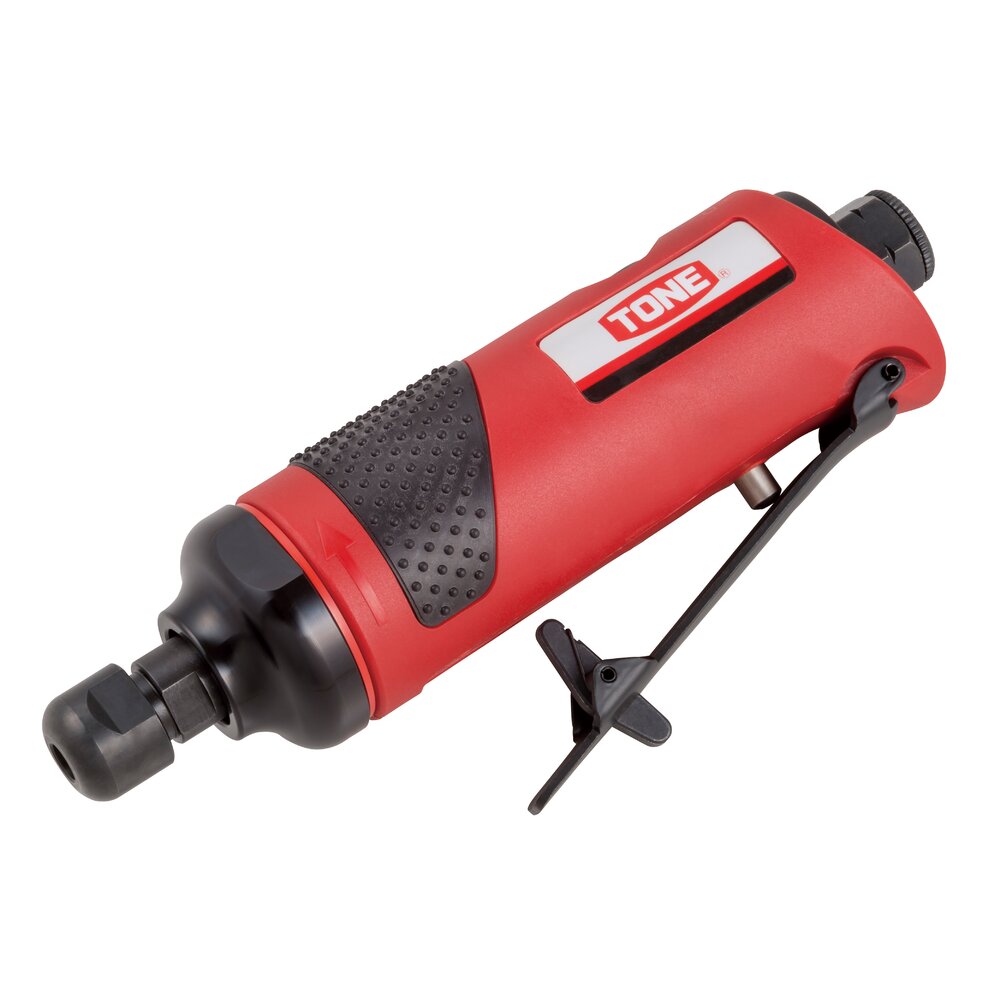

It is a compact grinder that is small, lightweight and excellent in workability. Comes with a collet chuck with a shaft diameter of 3 mm and 6 mm. Equipped with rotation speed adjustment function.
Application: For all metal polishing and deburring work.
Specifications
| Part Number | AGR01 |
|---|---|
| Output angle | Collet chuck |
| Tip shape | Collet chuck |
| No load speed (min-1[rpm]) | 20000 |
| Working air pressure (MPa) | 0.62 |
| Joint thread diameter (mm) | Rc1/4 (PT1/4) |
| Air hose inner diameter (mm) | 10mm or more |
| Weight (g) | 550 |
| Dimensions (W × D × H, mm) | 164 × 42 × 68 |
Included Accessories
Plug: R1/4 (PT1/4), Spanner for whetstone replacement: 2, Collet 3mm: 1, Collet 6mm: 1
Additional Information
The product does not include a grinding tool. Please purchase a grinding tool that meets the specifications. A compressor output of 3kW (4PS) or higher is recommended. Maximum air consumption (ntp) indicates the air consumption converted to standard conditions (0°C, 1 atmosphere = 0.1MPa). Maximum air consumption (op) indicates the air consumption under actual operating conditions (20°C, 0.62MPa). When inquiring about the price or delivery time of parts, please use the "sales part number" rather than the balloon number.
