Description

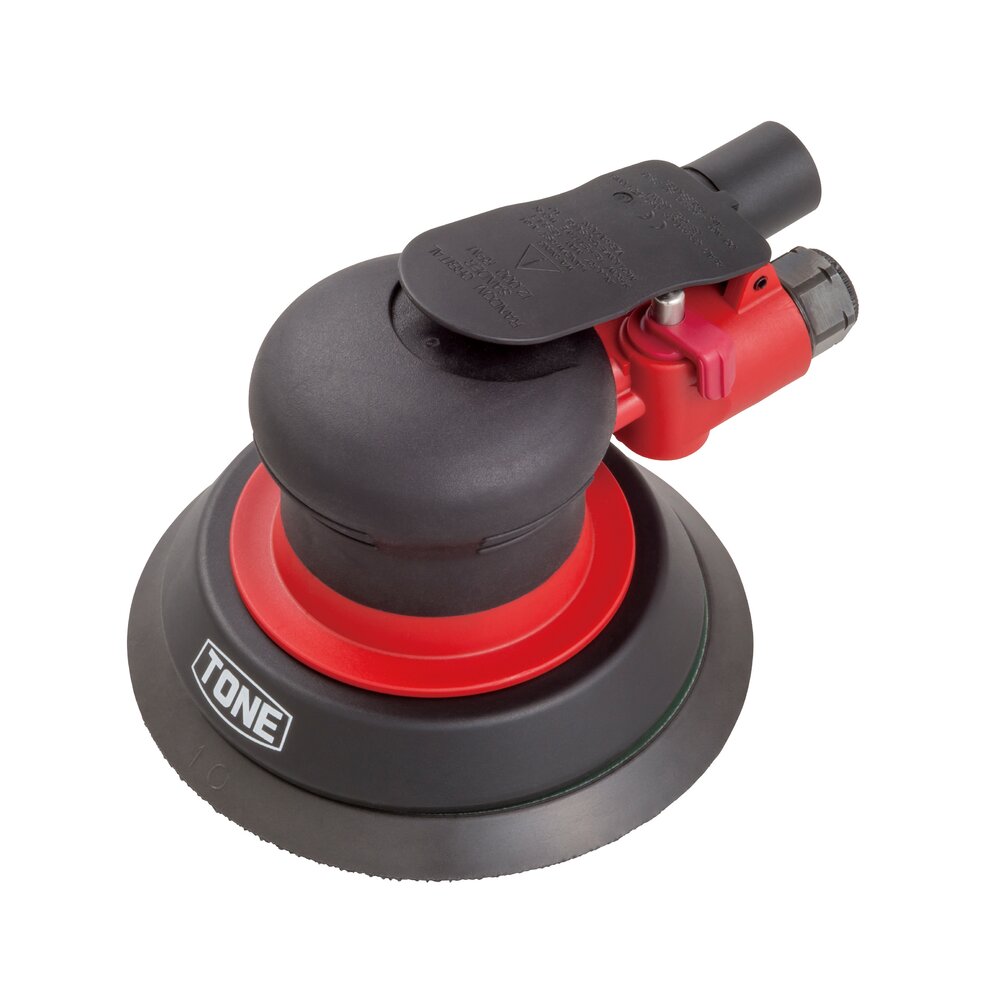

A palm-sized lightweight and compact double action sander with eccentric and rotary motion. Sanding is performed by eccentricity and rotation, so there is little unevenness in shaving and polishing work is possible.
Application: For repairing automobiles, polishing iron plates, painted surfaces, FRP, woodwork, etc.
Specifications
| Part Number | ADS50M |
|---|---|
| No load speed (min-1[rpm]) | 12000 |
| Working air pressure (MPa) | 0.62 |
| Joint thread diameter (mm) | Rc1/4 (PT1/4) |
| Air hose inner diameter (mm) | 10mm or more |
| Weight (g) | 700 |
| Orbit Diamond | 5mm |
| Dimensions (W × D × H, mm) | 165 × 124 × 101 |
Included Accessories
Plug: R1/4 (PT1/4), wrench for pad replacement
Additional Information
Sanding paper is not included with the product. Please purchase paper that meets the specifications. Use a compressor with an air tank. A compressor output of 3kW (4PS) or more is recommended. Maximum air consumption (ntp) indicates the air consumption converted to standard conditions (0°C, 1 atmosphere = 0.1MPa). Maximum air consumption (op) indicates the air consumption under actual operating conditions (20°C, 0.62MPa). When inquiring about the price or delivery time of parts, please use the "sales part number" rather than the balloon number.
